Q3X

Q3X

Performance levels in a modern design product

Q3X is the ideal solution for those customers searching for the latest performance levels in a modern design product. The thermal head provides excellent graphic printing quality and lower consumption. The cutter has been designed to optimize the product performance, both in terms of efficiency and reliability, and meets the most demanding operating requirements. Its elegant design, developed to perfectly match any environment, is combined with high technological contents. It prints on 80 mm wide thermal paper, with front ticket outlet. Serial / USB interface.
Bluetooth and Wi-Fi interfaces available.

Design and technological
content excellence

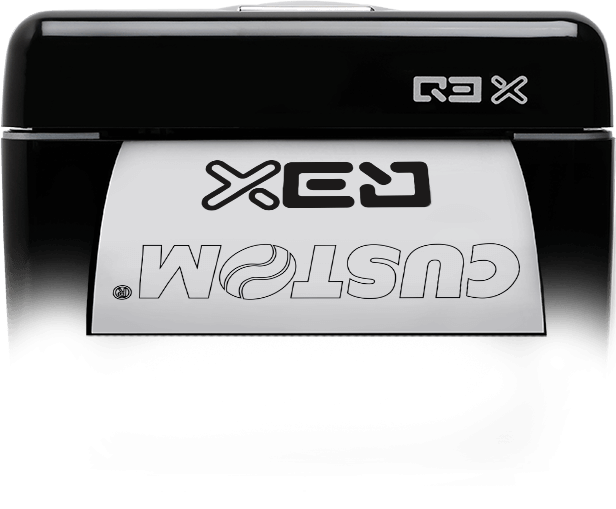

Receipt issue by the POS printer Q3X
Fiscal version available

Q3X Printer for fiscal slips, receipts, invoices and orders

  • Graphics 1 logo (576x910 dots)
  • Drivers: Windows® (32/64 bit) – only on request WHQL and silent installation, Linux (32/64 bit), Virtual COM, OPOS, Android™, iOS, ​MAC OSX, Windows Phone
  • Fonts International fonts on-board: any language available
  • Barcode UPC-A, UPC-E, EAN8, EAN13, CODE39, ITF,CODABAR, CODE93, CODE128, CODE32, 2D barcode PDF417, QRCode
  • Compatibility Android™, iOS, Windows Phone
  • RS232RS232
  • USBUSB
  • Wi-FiWi-Fi
  • BluetoothBT
  • EthernetETH

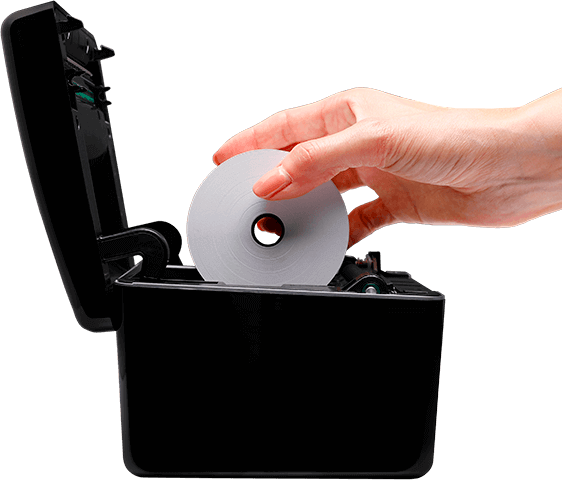

Loading paper roll into the POS printer Q3X Custom

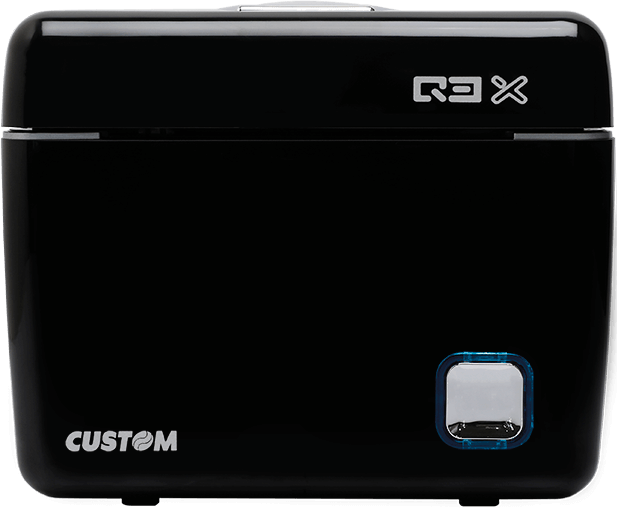

Front view of the POS printer Q3X

Characteristics

  • Paper width 80mm
  • Auto-cutter with partial cut
  • External paper roll max 80mm
  • 1D and 2D (PDF417, QRCode) barcode printing
  • Speed 140mm/sec
  • Lack mark management for auto-alignment
  • Resolution 200dpi
  • Flashing colour LED
  • Paper thickness 63 μm
  • Receipt outfeed at the front

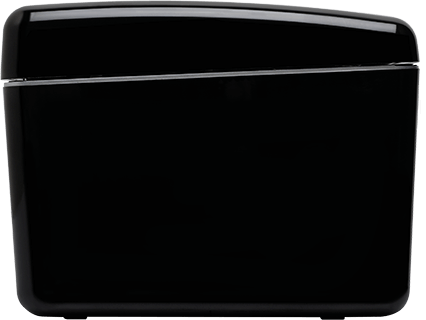

Side of the POS printer Q3X Custom

Software

Icona CePrinterSet

PrinterSet  to update logos, edit characters, set operating parameters and update the printer firmware. It allows you to create a file including the different SW customizations and send them to the printer via the interface provided, for easy and fast setting.

VIRTUAL COM Software Tool to create a virtual serial port on Windows PC (XP,Vista,7.8) capable of connecting Custom devices, physically linked via USB or ETHERNET, in such a way as to be compatible with software applications designed for connection in serial mode

Technical sheet

  Q3X Q3X Wi-Fi Q3X Ethernet Q3X Bluetooth
Interfaces RS232+USB (or Virtual COM) RS232+USB (or Virtual COM)+WI-FI Ethernet RS232+USB (or Virtual COM)+Bluetooth
Printing Method Thermal printing
Number of dots 8 dots / mm
Resolution 203 DPI
Printing (mm/sec) 140
Auto-cutter Cutter life 1 million cuts
Partial cut
Character set PC437, PC850, PC860, PC863, PC865, PC858 (euro)
Numbers of columns

Characters		     32              42              56

                                               2.25 x 3      1.75 x 3    1.25 x 3 (L x H mm)-Normal
Supported Barcode UPCA, UPCE, EAN13, EAN8, CODE39, ITF, CODABAR,
CODE93, CODE128, CODE32, QRCODE, PDF417		 UPCA, UPCE, EAN13, EAN8, CODE39, ITF, CODABAR,
CODE93, CODE128, CODE32, PDF417
Printing width 72 mm
Printing Format Normal, height and width from 1x to 8x, reverse, underlined, script, bold
Printing Direction Straight 90°, 180°, 270°
Paper width 80 mm
Paper weight from 55 gr/m² to 60 gr/m²
Paper thickness 63 μm
Roll Dimension max diam. 80 mm
Sensors Head temperature
Paper presence
Detection of black mark
Cover open
Low paper		 Head temperature
Paper presence
Detection of black mark
Cover open
Emulation CUSTOM / POS
Data Buffer 20 KB
Flash Memory 4 MB (+1 MB internal to the micro) 512 Kb
RAM Memory 2 MB
Graphic Memory 1 logo (576x910 dots)
Drivers Windows® (32/64 bit) – only on request WHQL and silent installation;
Linux (32/64 bit);
Virtual COM (Linux or Windows 32/64 bit);
OPOS;
Windows Phone;
Android™;
iOS;
macOSX		 Windows® (32/64 bit) – only on request WHQL and silent installation;
Linux (32/64 bit);
OPOS;
Windows Phone;
Android™;
iOS;
macOSX
Software tools PrinterSet, Virtual COM, Custom Windows API
Power supply 24 Vdc ± 10% (External power supply)
Medium consumption 1 A (12.5% dots on)
DKD Function 1 Drawer kickout
MTBF 360,000 hours (electronic board)
Safety EN60950 +A1+A2+A3+A4
Marks CE, RoHS Compliant
Dimensions 150 mm (L) × 140 mm (W) × 117mm (H)
Weight 0.9 Kg
product side wireframe product front wireframe

Models

911FF010100K33

911FF010100K33

PRINTER Q3X BTH IAP2 USB RS232

Accessories
911FF010100333

911FF010100333

PRINTER Q3X USB RS232

Accessories
911FF010200B33

911FF010200B33

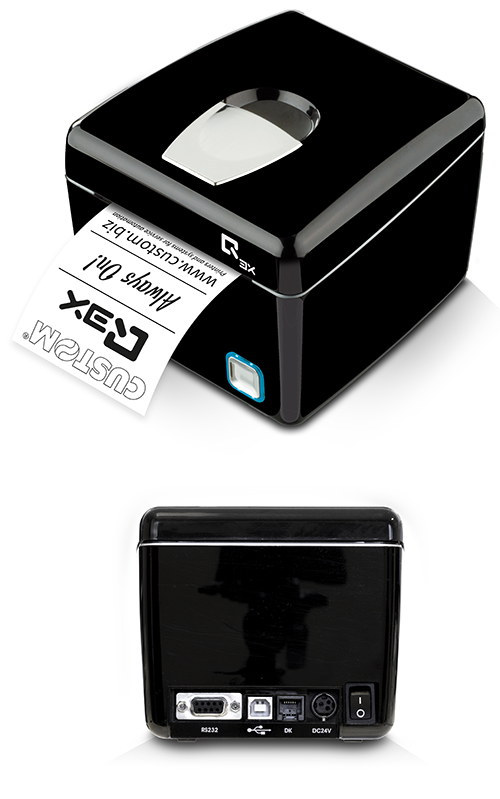

PRINTER Q3X WIFI USB RS232

Accessories
911FF010100533

911FF010100533

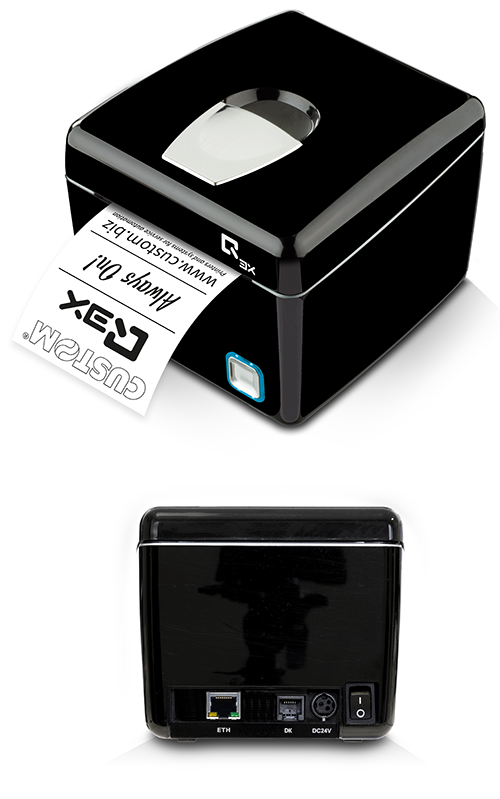

PRINTER Q3X ETH

Accessories
