VKP60

60mm Ultra-Compact Receipt/Ticket Kiosk Printer

VKP60 is the kiosk printer for receipts and tickets, capable of adapting to a wide range of settings thanks to its multiple configurations. Compact, versatile, and packed with features such as anti-jam, total and partial cut, this device fits any type of kiosk with its roll holder adjustable in two positions. The product boasts self-installing Windows^®, Linux, OPOS, Java POS, and Status Monitor SDK drivers and it supports PrinterSet, CPT, Windows^® API, Driver Manager, Android^TM API, and iOS API software tools. VKP60 is available in two different configurations: compact and paper mouth.

High versatility

The wide range of accessories make it a suitable for every application

Interface friendly

USB is default, serial and ethernet are available as optional

Eco friendly

Power and paper saving modes

VKP60 Presenter

One model, two configurations

Loop/present or present/retract (patented).

Easy printer swap

To replace installed unit without tools

VKP60 Compact

Active anti-jam

Reduces the need for technical service and allows a reliable receipt delivery

Performance and compactness

Ultra-compact solution capable of total and partial cut

VKP60
Gallery
Accessories
Technical sheet
Models
Download Datasheet
Share

Share

Linkedin

Facebook

Twitter

Whatsapp

Email

Accessories

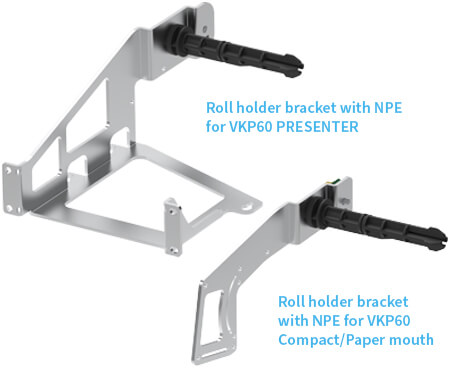

Roll holder bracket VKP60 with NPE
Roll holder bracket VKP60 Presenter with NPE

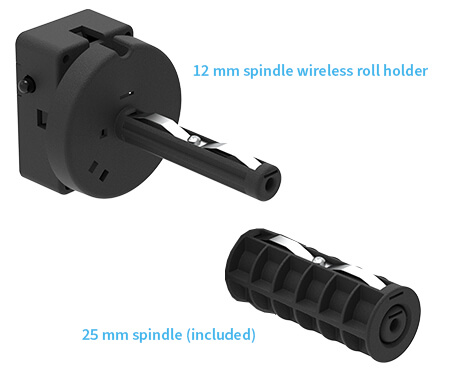

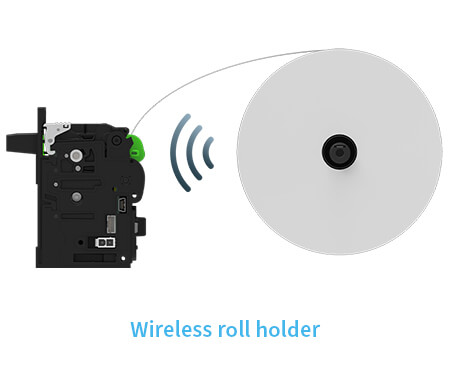

Roll holder pin wireless with NPE

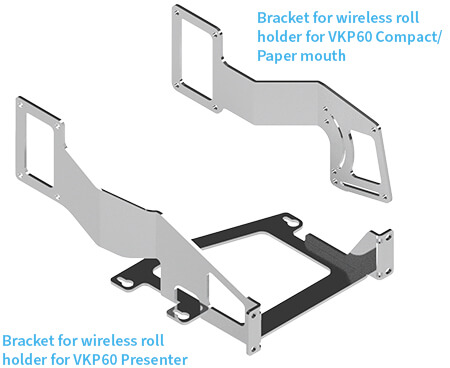

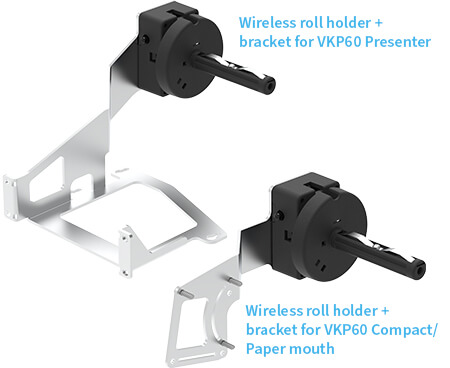

Roll holder bracket wireless with NPE VKP60 Presenter

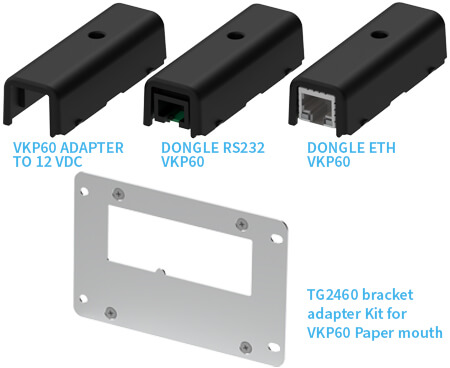

VKP60 adapter to 12Vdc
VKP60 compatible TG2460 fixing kit
Dongle ETH VKP60
Dongle RS232 VKP60

Paper Saving Mode

This product thanks to the Paper Saving Mode, is capable of reducing paper usage by 30%⁽¹⁾ while maintaining the same amount of data present on the ticket/receipt.

⁽¹⁾ The reduction refers to the total length of the ticket, measured across two reference lengths (58 and 40). The Paper Saving Mode option does not affect the printing of the Header and Images sections present on the ticket and which remain unchanged.

Energy Saving Mode

Our latest generation printers can reduce stand-by power consumption by up to 50% with the firmware option Power Saving Mode.

Technical sheet

	VKP60 - Compact	VKP60 - Paper Mouth	VKP60 - Presenter
Resolution	203 dpi
Power supply	24V, 12V adapter (optional)
Printing speed	up to 200 mm/s @24V
Paper thickness	50 - 130 μm		50 - 100 μm
Roll diameter	max. 100 mm (with CUSTOM roll holder)
Paper width	44, 50, 54, 58, 60 mm
Cutter	Total and partial cut		Total cut
Interfaces	USB 2.0, Virtual Com, RS232 or ETH (optional)
Sensors	Paper present, cover open, printhead temperature, cutter home, black mark, anti-jam, optional: near paper end		Paper present, cover open, printhead temperature, cutter home, black mark, paper in output, optional: near paper end
Character set	PC437, PC850, PC858, PC860, PC862, PC863, PC864, PC865, PC866, Katakana, WPC1250, WPC1251, WPC1252, WPC1253, WPC1254, WPC1255, WPC1256, WPC1257, WPC1258, Chinese GB18030, Korean PC949
Supported barcodes	UPC-A - UPC-E - EAN13 - EAN8 - CODE39 - ITF - CODABAR - CODE93 - CODE128 - CODE32 Codice QR - Aztec - PDF417 - Datamatrix - GS1 Databar
Print head life	200 km / 100M pulses
Cutter life	1M
LED paper mouth	No	Default
Drivers	Windows^® (32/64 bit), CUPS Linux (32/64 bit), OPOS, Java POS, Status Monitor SDK
SW tools	PrinterSet, CPT, Windows^® API, Driver Manager, Android^TM API, iOS API
Operative temperature	-20 to +70ºC ; 10 to 90% RH (no condensation)
Dimensions	59.5 mm (L) x 86 mm (W) x 86.5 mm (H)	71.5 mm (L) x 86 mm (W) x 89.5 mm (H)	99 mm (L) x 109.8 mm (W) x 87.3 mm (H)
Weight	330 g	340 g	490 g
