SM425

1D - 2D Wireless Barcode Scanner

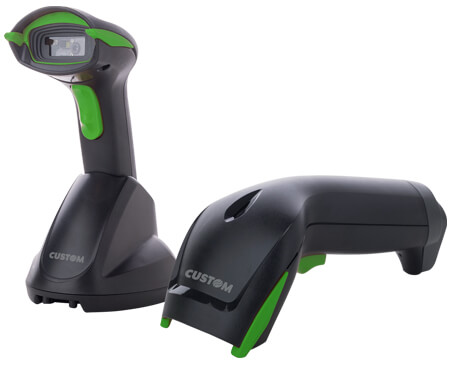

The new SM425 1D-2D barcode scanner, wireless and equipped with Bluetooth®, features the most modern design together with a rugged casing and it supports IP42 sealing protection, which is particularly suitable for retail, logistic and warehouse markets. SM425 is equipped with useful functions that makes customer's operations easier and allows to save space. Equipped with excellent performance in reading most 1D barcodes and 2D, it facilitates the use of data and increases productivity. It supports barcode scanning with up to 250 mm reading depth for the majority of 1D, 2D barcodes and GS1 DataBarTM codes. The SM425 scanner can be used both in manual mode (button) and in automatic mode, using the supplied cradle.

Caractéristiques

  1. Excellent reading performance in low light environments and on labels and smartphones
  2. Drop resistant from 150 cm
  3. Fully configurable with ScannerSet software
  4. IP42 protection from water and dust
  5. Wireless Bluetooth® barcode reader with charging cradle included





  • Excellent Reading Performance for 1D, 2D and GS1 Databar codes, e.g. of QR code with 30% damage or when one finder pattern is missing
  • Support automatic sense reading and is able to read under 0 Lux dark environment
  • Support multiple interface options, USB HID and Virtual COM
  • With intelligent activation, it automatically switches over to automatic-sense reading while placed on the cradle
  • Facilitates both contact and air 16KV Electrostatic discharge
  • Connectable to Android™ tablets or smartphones wireless or with optional cable
  • When the scanner is connected to Android™ and iOS O.S., it's possible to activate/deactivate the virtual keyboard with Scan button





MARKETS

  • Retail
  • Warehousing
  • Pharmacies
  • Self-Checkout
  • Hospitality

Logiciel

Fiche technique

  SM425
PHYSICAL
Scanner weight Approx. 160 g
Cradle weight Approx. 170 g

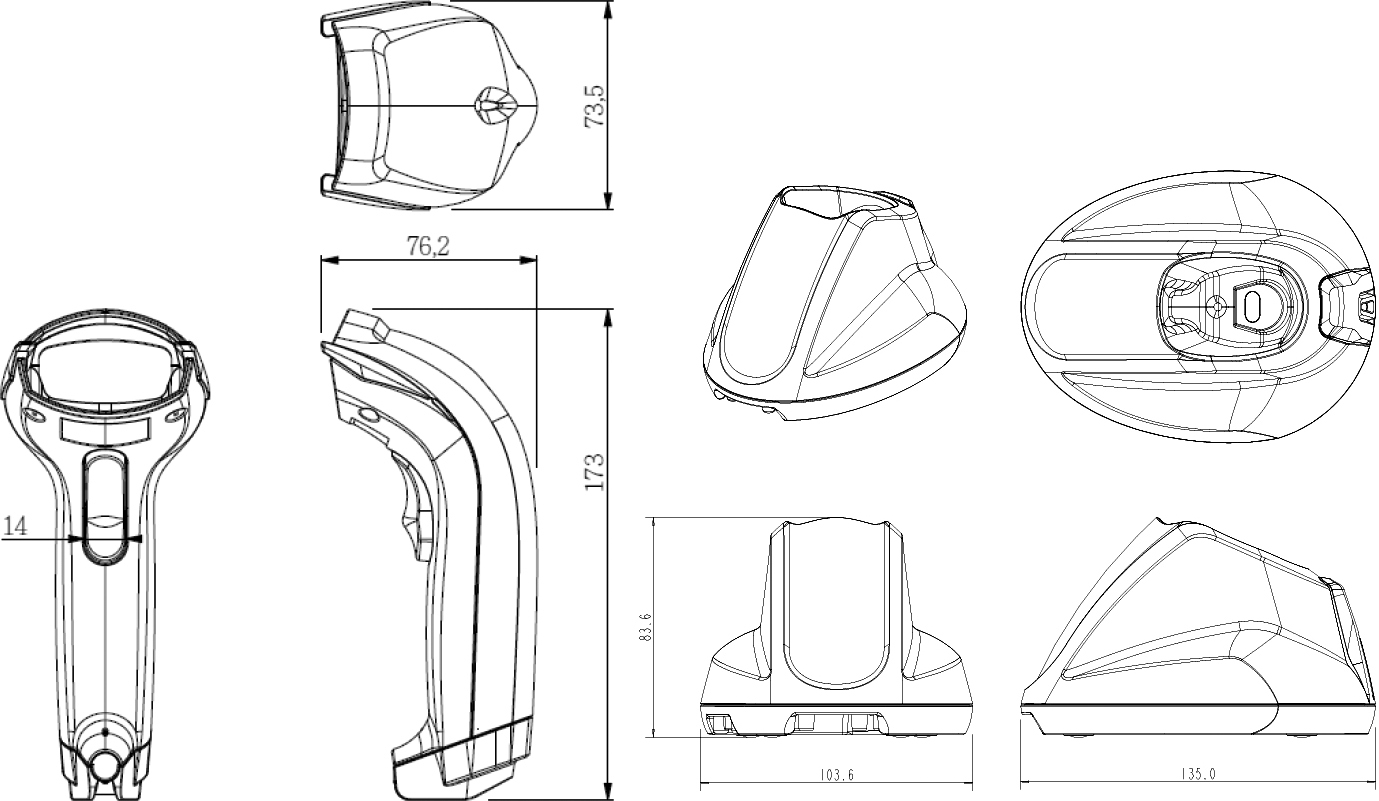

Dimension Scanner: 73,5 mm W x 173 mm D x 76,2 mm H
Cradle: 103,6 mm W x 135 mm D x 83,6 mm H

PERFORMANCE
Light source White light LED
Sensor 1280 (H) x 800 (V) pixels
Field of view Horizontal - 55°, Vertical - 35°
Scan rate 60 fps (at full resolution)
Reading distance 250mm@20mil/0.5mm, PCS90%
Print contrast ratio (min.) PCS25%
Resolution 3mil/0.076mm@PCS90% Code39,
5mil/0.127mm@PDF417
Reading angle
  Pitch angle
  Skew tolerance		 Test Conditions: Code 39, 10mil/0.25mm,PCS90%
5°~60° (±5°)
5°~60° (±5°)
Ambient light 100,000 Lux Max.
Sealing IP42 water and dust protection
Interfaces Bluetooth, USB, USB HID, VCOM

ENVIRONMENTAL
Scanner voltage battery Li-Ion 3.7V/2600mA
Scanner recharge time Approx. 5 hours
Scanner reads per charge 20,000 times in continuous read
Cradle voltage DC 5V
Power consumption
  Power On
  Stand By
  Operation
95mA
55mA
70mA
LED indicator Good read: Green
Bluetooth® Communication: Blue

RADIO
Bluetooth module Bluetooth® V2.1 EDR
Frequency band 2.402GHz~2.480GHz
Transmission range Up to 80M(262.47FT.) line of sight
RF output power Class 1 (under 20dBm)

RELIABILITY
MTBF 40,000 hours minimum
Cable bending test 30 times/min@500g/90°
Drop resistance 150 cm (59.05 inches)

BARCODE SUPPORTATI
1D SYMBOLOGIES UPC-A, UPC-E, EAN-8/JAN-8, EAN-13/JAN-13, Code 39, Code 128, Interleaved 25,
Industrial 25, Matrix 25, Codabar/NW7, Code 93, China Post, MSI/Plessey, Telepen,
GS1 Databar Omni-directional, GS1 Databar Limited, GS1 Databar Expended
2D SYMBOLOGIES Data Matrix, PDF 417, QR Code, Micro PDF 417, Micro QR Code, Aztec,
Dotcode, Maxi Code, Han Xin Code





READING RANGE
Barcode mil/Depth of field mm
3mil Code39
4mil Code39
5mil Code39
6mil Code39
10mil Code39
13mil Code39
20mil Code39
20mil QR Code
20mil PDF417
20mil Data Matrix		 30~70 mm
20~80 mm
20~100 mm
20~120 mm
20~170 mm
20~200 mm
20~250 mm
30~180 mm
30~110 mm
30~180 mm
Note: the test is under ambient light 700 ~ 800 Lux.



Modèles

995ED030200A33

995ED030200A33

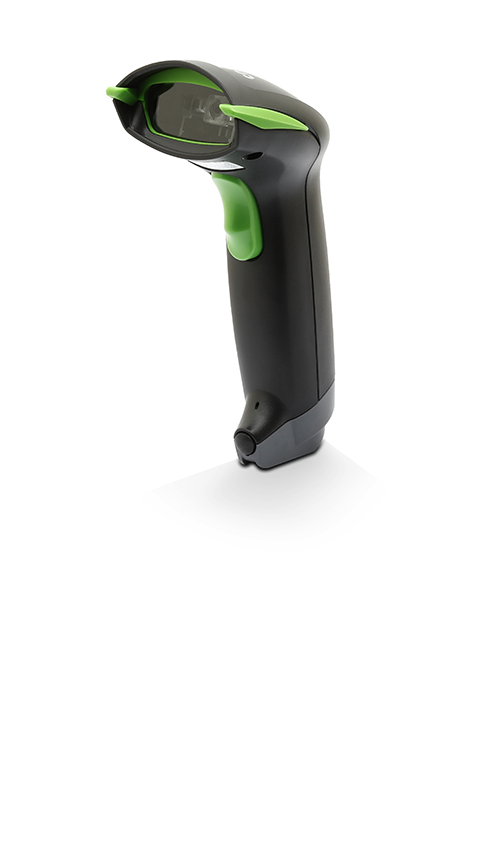

SM425 SCANMATIC BARCODE SCANNER 2D WIRELESS
